Snap Hook,Zinc Plated
No.: Snap Hook, Zinc PlatedDESCRIPTION
523

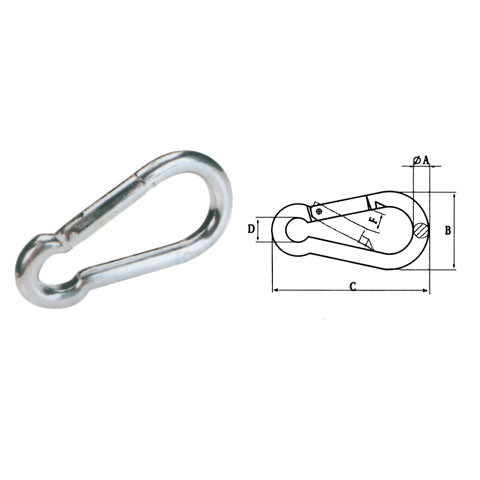

TABLE PARAMETER
| PART. NO. | SIZE | A | B | C | D | F | W.L.L. | N.W. |
| mm | mm | mm | mm | mm | mm | Ibs | kg/100pcs | |
| RSHK0440 | 4X40 | 4 | 20 | 40 | 7 | 7 | 200 | 0.8 |
| RSHK0550 | 5X50 | 5 | 25 | 50 | 8 | 7 | 220 | 1.6 |
| RSHK0660 | 6X60 | 6 | 30 | 60 | 9 | 8 | 260 | 2.8 |
| RSHK0770 | 7X70 | 7 | 35 | 70 | 10 | 8 | 400 | 4.5 |
| RSHK0880 | 8X80 | 8 | 40 | 80 | 12 | 9 | 500 | 6.3 |
| RSHK0990 | 9X90 | 9 | 45 | 90 | 12 | 10 | 550 | 9.4 |
| RSHK1010 | 10X100 | 10 | 50 | 100 | 15 | 11 | 770 | 12.5 |
| RSHK1112 | 11X120 | 11 | 57 | 120 | 18 | 16 | 990 | 19.2 |
| RSHK1214 | 12X140 | 12 | 67 | 140 | 20 | 19 | 1200 | 25.8 |
| RSHK1316 | 13X160 | 13 | 74 | 160 | 22 | 25 | 1400 | 35.1 |
| RSHK1418 | 14X180 | 14 | 86 | 180 | 22 | 35 | 1600 | 45.5 |
| RSHK1520 | 15X200 | 15 | 96 | 200 | 26 | 37 | 1800 | 61.8 |
