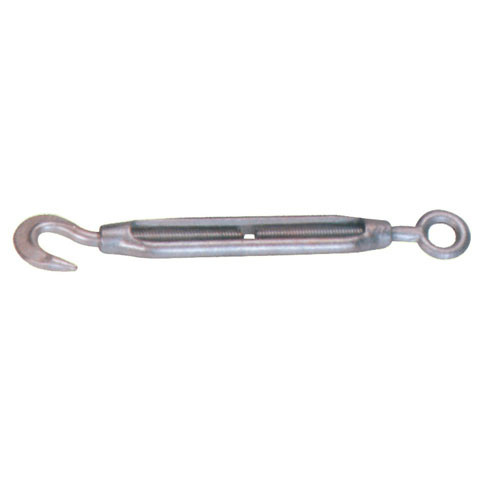

Turnbuckles Din 1480
No.: Turnbuckles Din 1480tDESCRIPTION
613
TABLE PARAMETER
| PART. NO. | SIZE | W.L.L. | TOTAL LENGTH | BODY LENGTH | N.W. |
| mm | N | mm | mm | kg/100pcs | |
| RD1T0060 | M6 | 2250 | 180 | 110 | 7.8 |
| RD1T0080 | M8 | 4100 | 195 | 110 | 14.8 |
| RD1T0100 | M10 | 6500 | 230 | 125 | 29.4 |
| RD1T0120 | M12 | 9300 | 250 | 125 | 36.3 |
| RD1T0160 | M16 | 13000 | 320 | 170 | 56.0 |
| RD1T0200 | M20 | 17700 | 400 | 200 | 156.0 |
| RD1T0220 | M22 | 32000 | 428 | 220 | 230.0 |
| RD1T0240 | M24 | 39200 | 490 | 255 | 325.0 |
| RD1T0300 | M30 | 62500 | 530 | 255 | 415.0 |
